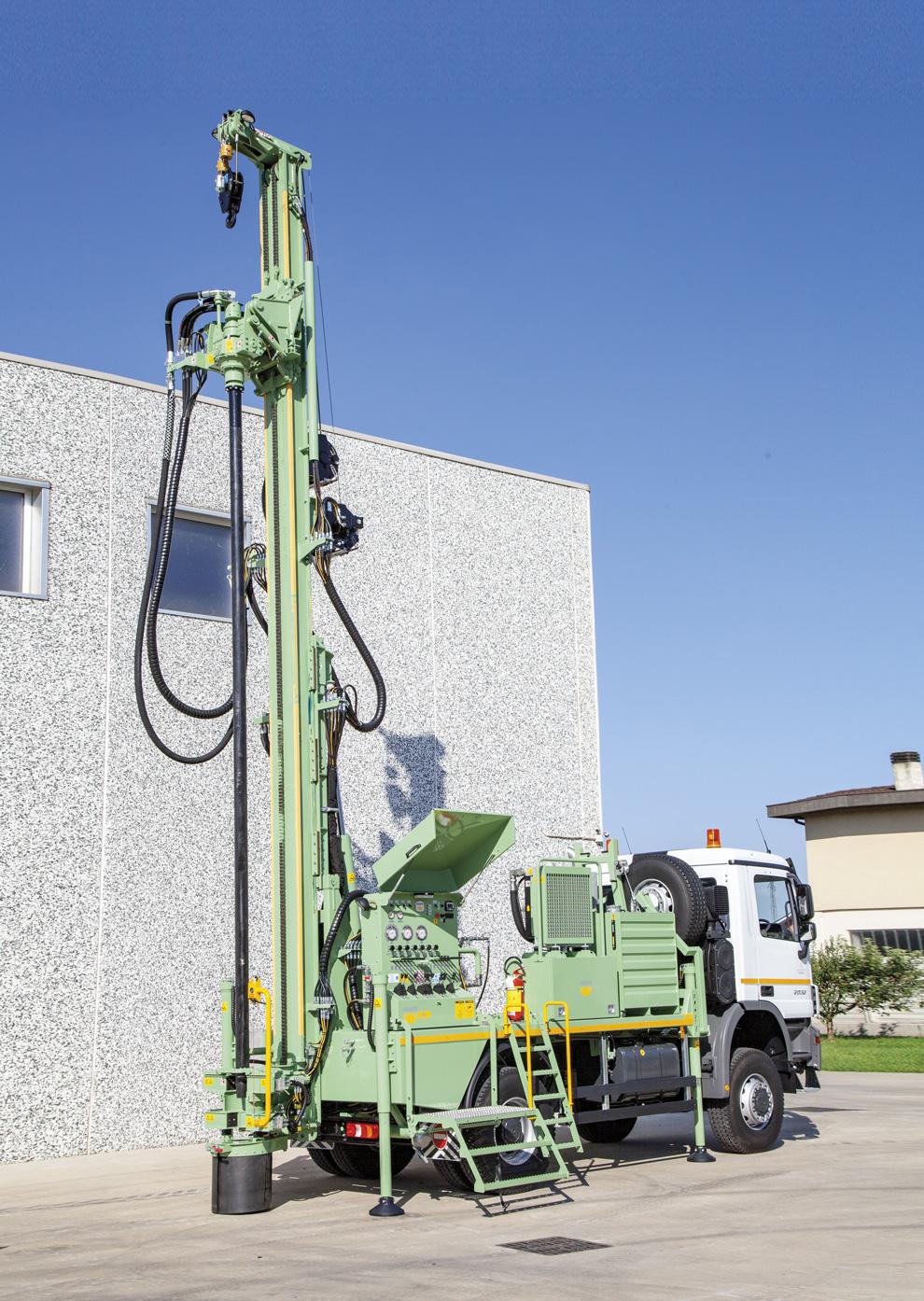

General Characteristic :
- Size:
◦ Width 2,500 mm
◦ Length 8,180 mm
◦ Height 3,220 mm
◦ Weight 26,500 Kg (Including Groundwater Drilling Equipment)
- Engine Type
◦ 4 cylinders
◦ Water cooling system
◦ Max. Horse Power = 360 hp at 1,900 rpm
◦ Electronically Engine Start-Up
◦ 300 Liters
◦ Driven Force System: Forward 16 Steps, Backward 2 Steps
- Effectiveness
◦ Direct Rotary, Top Head Drive and Down The Hole Hammer Drilling
◦ For bore hole size 8”, 400 m depth
◦ For drilling pipe size 3" diameter, 8.8 mm. Thickness, 6 m. long
◦ For casing size 6”, depth 400 m.
Specific Characteristic :
Please contact our Mobile Drilling Rigs Sales and Engineer representatives for advice.
We also provide Shallow Groundwater Well Drilling Equipment, i.e., 100-Ton Rough Terrain
Crane (4x4), Backhoe, Attached Disaster Relieved Equipment Hydraulic Trucks.
